Ground Protection Mats
Ground Protection Mats for Temporary Access
Ground protection mats create a stable, reusable surface for temporary access while helping protect soft, muddy, landscaped, or sensitive ground from vehicle and equipment traffic.
RockRoadMat supplies HDPE and UHMWPE ground mats in light-duty and heavy-duty configurations, with options for panel size, thickness, surface pattern, connection system, color, and project-specific customization.
Temporary Access
Heavy Equipment
Surface Protection
Core Features
“Our HDPE ground protection mats provide a safe, non-slip surface for heavy equipment while protecting sensitive turf and preventing ground cross-contamination.”

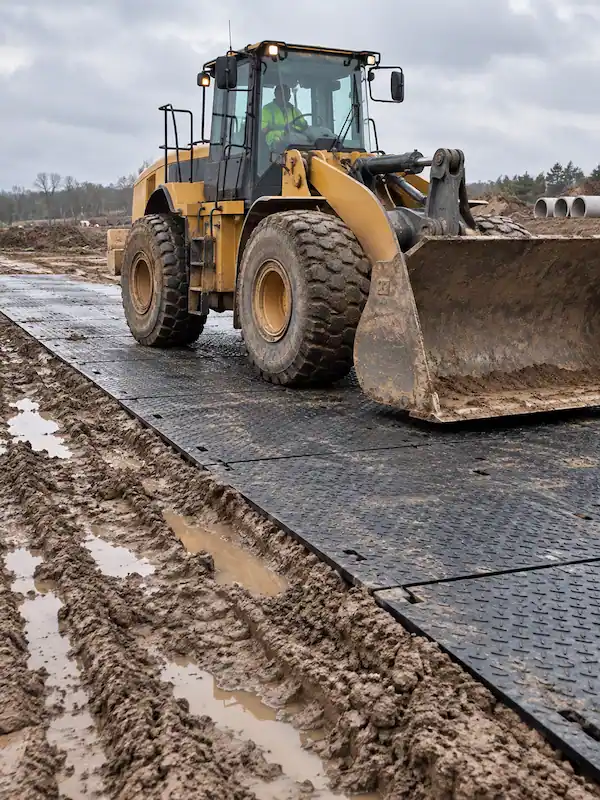

Load Distribution & Ground Protection
- Load Spreading: Helps distribute vehicle and equipment loads across a wider surface area.
- Ground Protection: Helps reduce rutting and surface damage on soft, muddy, landscaped, or sensitive ground.
- Multiple Load Classes: Light- and heavy-duty configurations are available for different equipment and project requirements.
Flexible Installation & Connections

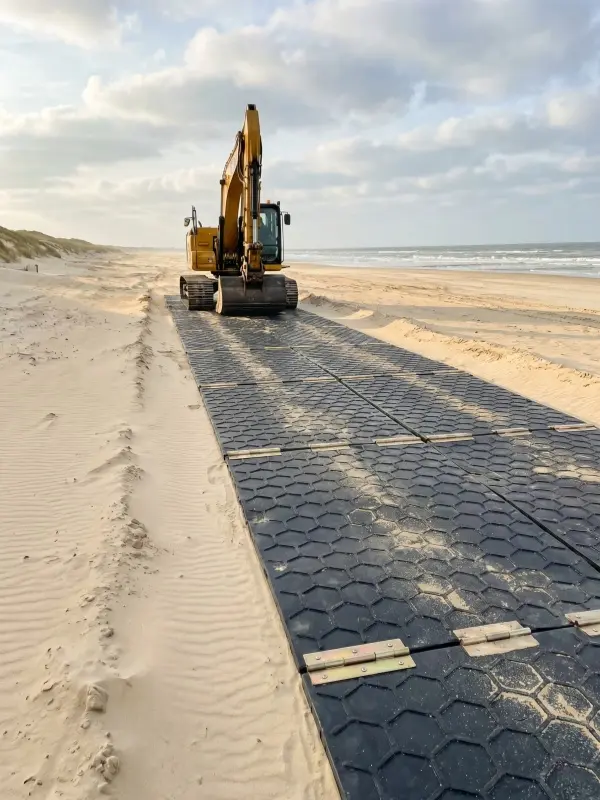

- Temporary Access: Multiple mats can be connected to create temporary roadways, access paths, and working surfaces.
- Connection Options: Connector systems are available for different mat configurations and installation requirements.

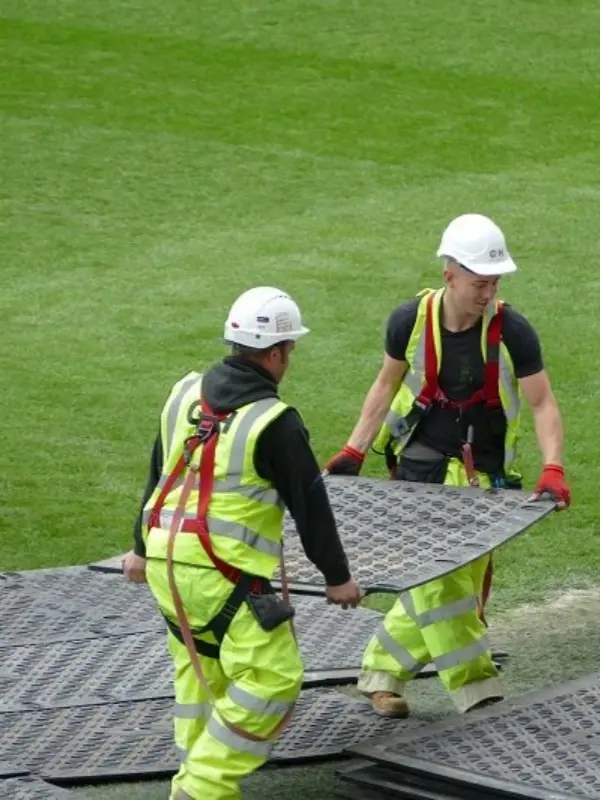

- Easy Repositioning: Selected lightweight models can be manually handled and repositioned between work areas.
Traction & Surface Options

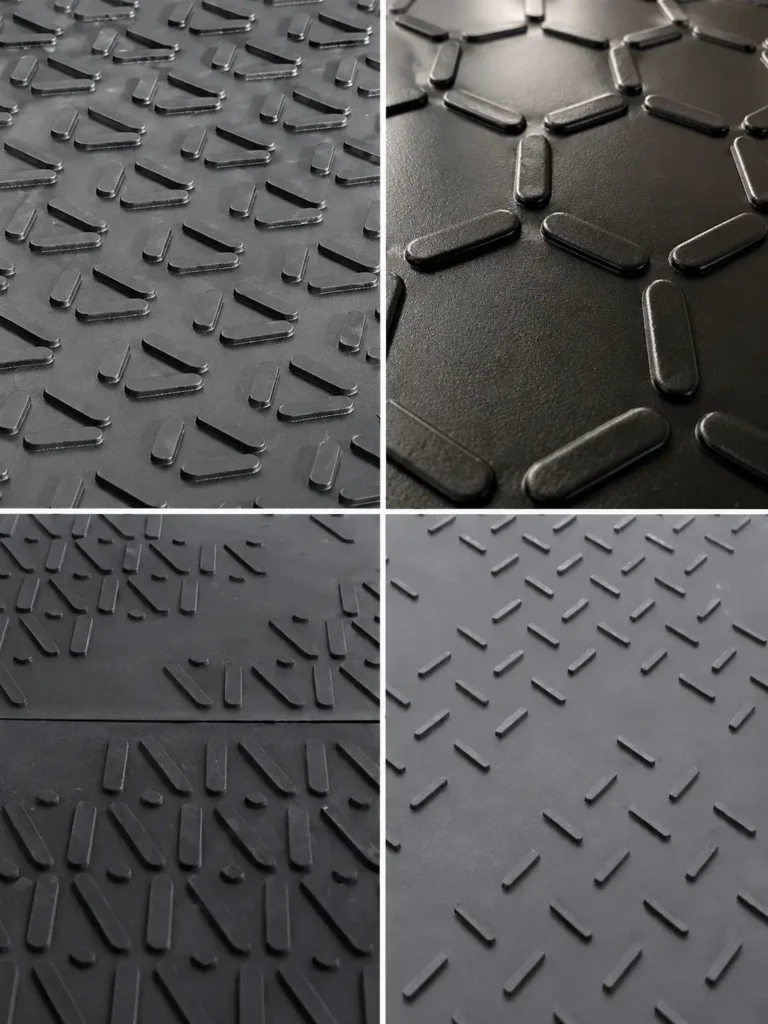

- Anti-Slip Surfaces: Molded traction patterns help improve grip for vehicles and equipment during site access.
- Multiple Patterns: Different surface textures are available to suit ground conditions and operating requirements.
- Custom Options: Selected models can be supplied with customized colors, surface patterns, and logo marking.
Durable Polyethylene Construction
- HDPE & UHMWPE Options: Material selection depends on mat configuration, load requirements, and operating conditions.
- Outdoor Performance: Polyethylene construction provides good resistance to moisture, corrosion, and many common chemicals.
- Reusable Design: Mats can be removed, relocated, and reused across temporary access and ground protection projects.
Our Premium Ground Protection Mat Series

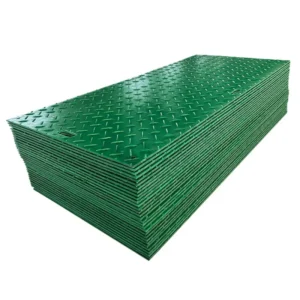

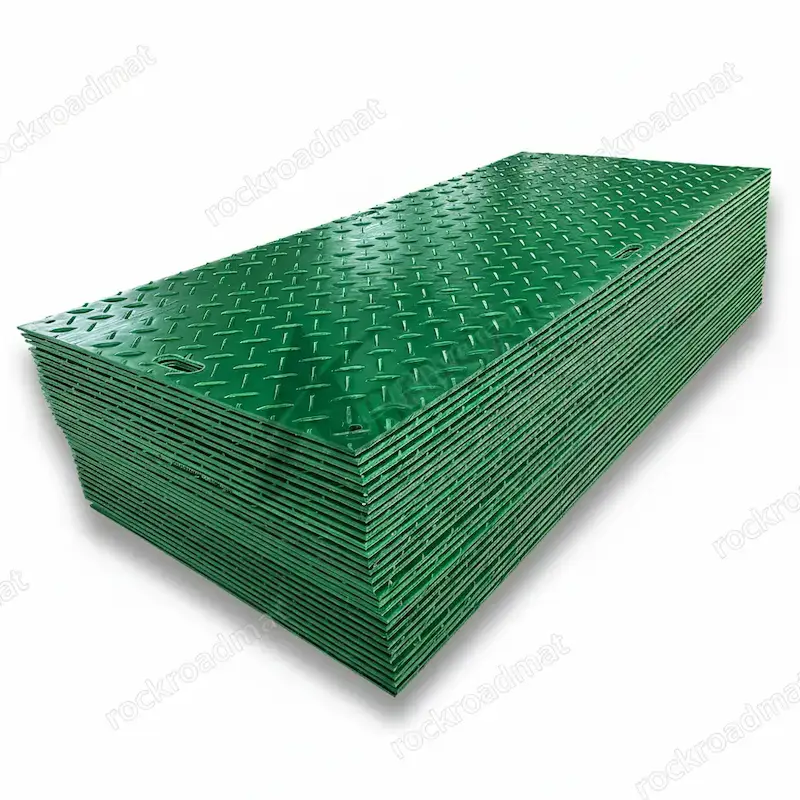

Light-Duty Ground Protection Mats
Lightweight & Easy to Handle
HDPE construction provides a practical balance of strength, durability, and handling convenience for temporary access and surface protection projects.
Flexible Size & Thickness Options
Available in multiple panel sizes and thicknesses to suit different site conditions, access requirements, and equipment applications.
Anti-Slip Surface Options
Choose from different molded traction patterns designed to improve grip for vehicles and equipment on temporary access routes.
Custom Colors & Branding
Selected models can be supplied in different colors with customized surface patterns and logo marking for project or branding requirements.

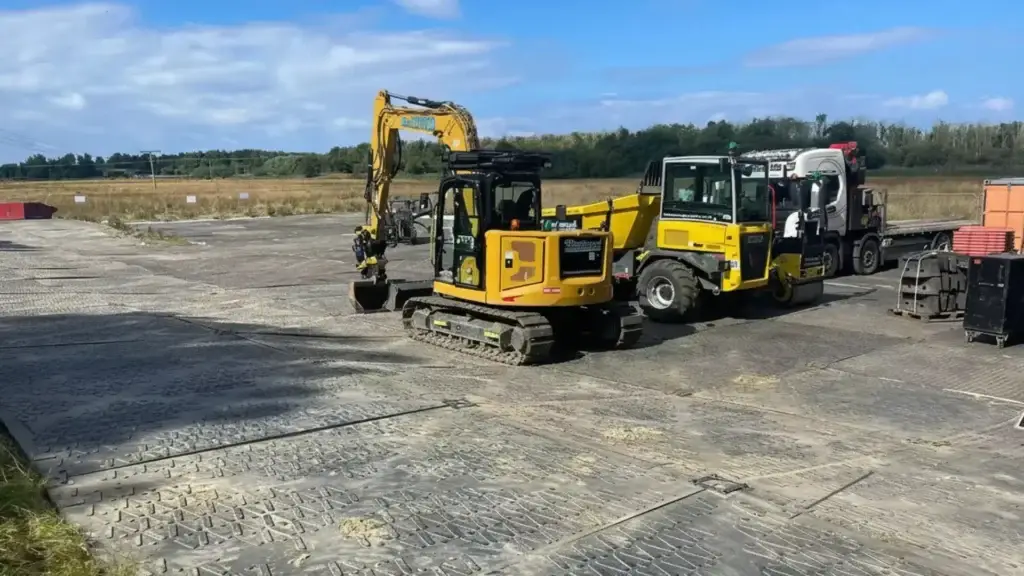

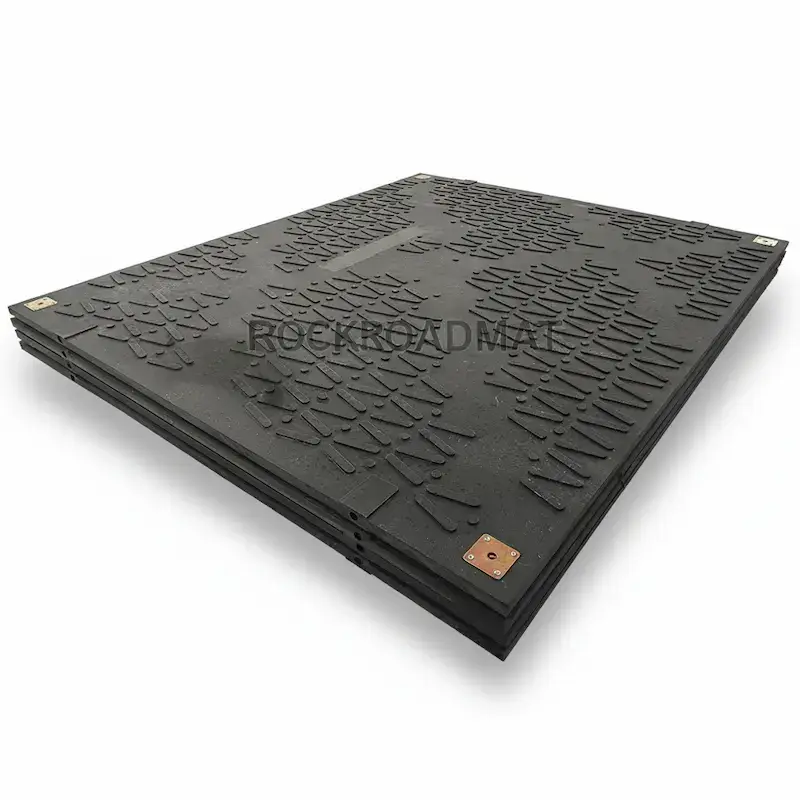

Heavy-Duty Ground Protection Mats
Heavy-Duty Load Distribution
Designed for demanding temporary access applications involving heavy vehicles and equipment, with model-specific load ratings available for different project requirements.
Large-Format Panel Options
Available in larger panel sizes and thicknesses to reduce the number of joints and provide a more continuous access surface across challenging ground conditions.
Flexible Connection Systems
Different connector configurations are available to support temporary roadways, equipment access routes, and project-specific installation requirements.
Surface & Branding Customization
Selected models can be supplied with different traction patterns, colors, and logo marking to suit operating conditions and project identification needs.
How to Choose Right Ground Protection Mat
Choosing the right ground protection mat depends on more than load capacity alone. Equipment type, ground conditions, access requirements, panel configuration, and installation needs should all be considered when selecting a suitable mat for your project.
Equipment & Load Requirements
Consider the equipment type, operating weight, wheel or track configuration, and how loads are distributed across the mat surface.
Ground & Site Conditions
Evaluate whether the access area is firm, soft, muddy, sandy, uneven, landscaped, or otherwise sensitive to vehicle traffic.
Access & Installation Requirements
Consider the required access length, frequency of relocation, installation method, and whether the mats will form a temporary roadway or working surface.
Panel & Connection Requirements
Choose suitable panel dimensions, thickness, surface pattern, and connection method based on site layout and operating conditions.
Typical Ground Mat Specifications
Load Rating Note: Load ratings shown are reference values for product selection. Actual suitability depends on mat dimensions, ground conditions, equipment type, load distribution, installation method, and operating environment. Please confirm project requirements before final product selection.
| MODEL | LENGTH | WIDTH | THICKNESS | WEIGHT | MAX LOAD | QTY/40FT |
|---|---|---|---|---|---|---|
| RR-GM-2000x1000-10.0 | 2000 mm / 6.5 ft | 1000 mm / 3.3 ft | 10 mm / 0.4 in | 22.6 kg / 50 lbs | 40 tons | 900 |
| RR-GM-2440x610-12.7 | 2440 mm / 8 ft | 610 mm / 2 ft | 12.7 mm / 0.5 in | 10.4 kg / 23 lbs | 45 tons | 1000 |
| RR-GM-2440x1220-12.7 | 2440 mm / 8 ft | 1220 mm / 4 ft | 12.7 mm / 0.5 in | 41.7 kg / 92 lbs | 80 tons | 550 |
| RR-GM-1820x910-12.7 | 1820 mm / 6 ft | 910 mm / 3 ft | 12.7 mm / 0.5 in | 23 kg / 51 lbs | 80 tons | 600 |
| RR-GM-3000x1500-20.0 | 3000 mm / 9.8 ft | 1500 mm / 4.9 ft | 20 mm / 0.8 in | 73.3 kg / 162 lbs | 100 tons | 320 |
| RR-GM-3000x2500-38.0 | 3000 mm / 9.8 ft | 2500 mm / 8.2 ft | 38 mm / 1.5 in | 292 kg / 645 lbs | 130 tons | 78 |
| RR-GM-4000x2000-38.0 | 4000 mm / 13.1 ft | 2000 mm / 6.5 ft | 38 mm / 1.5 in | 312 kg / 687 lbs | 130 tons | 80 |
| RR-GM-6000x2000-40.0 | 6000 mm / 19.7 ft | 2000 mm / 6.5 ft | 40 mm / 1.6 in | 490 kg / 1080 lbs | 150 tons | 80 |
| RR-GM-6000x2000-80.0 | 6000 mm / 19.7 ft | 2000 mm / 6.5 ft | 80 mm / 3.2 in | 990 kg / 2182 lbs | 200 tons | 25 |
| RR-GM-3050x2150-40.0 | 3050 mm / 10.0 ft | 2150 mm / 7.0 ft | 40 mm / 1.6 in | 240 kg / 530 lbs | 140 tons | 111 |
| RR-GM-4000x2000-45.0 | 4000 mm / 13.1 ft | 2000 mm / 6.6 ft | 45 mm / 1.8 in | 295 kg / 650 lbs | 160 tons | 72 |
FAQ about Ground Protection Mats
What sizes and thicknesses are available for ground protection mats?
Ground protection mats are available in a range of standard sizes and thicknesses for light-duty, heavy-duty, and overlapping applications. Common panel sizes range from compact formats for easier handling to large-format mats for heavy equipment access. Custom dimensions and thicknesses can also be discussed based on project requirements.
How much do ground protection mats weigh?
Weight varies significantly depending on panel size, thickness, and material. Lightweight HDPE mats may weigh only a few tens of kilograms and are easier to handle and relocate, while large heavy-duty mats can weigh several hundred kilograms and may require equipment for installation. Refer to the specification table above for typical model weights.
How much weight can ground protection mats support?
Load capacity depends on the mat design, dimensions, thickness, material, ground conditions, equipment type, and how the load is distributed. Different models are available for light vehicle access through to heavy construction equipment. The load ratings shown in our specification table are reference values and should be reviewed together with actual site conditions before final selection.
Are lightweight ground protection mats suitable for vehicle access?
Yes. Light-duty ground protection mats are suitable for passenger vehicles, light trucks, and similar traffic when used on relatively firm ground such as grass, compacted soil, or established access areas. Their lower weight also makes them well suited to short-term projects where mats need to be installed, removed, or relocated frequently.
How are ground protection mats installed and connected?
Installation depends on the mat type, size, and weight. Lightweight mats can often be positioned manually, while larger heavy-duty mats may require lifting or handling equipment. Different connector systems are available for temporary roadways and access routes, and overlapping mats are designed for fast connection and removal without specialized installation tools.
How much do ground protection mats cost?
Pricing depends on the mat type, dimensions, thickness, material, surface pattern, connector configuration, order quantity, and customization requirements. Because most projects have different site and access conditions, we recommend requesting a quotation based on your required specifications and project quantity.
What is the difference between light-duty and heavy-duty ground mats?
Light-duty ground mats are designed for lighter vehicles, relatively firm ground, and temporary applications where easy handling and frequent relocation are important. Heavy-duty mats are better suited to construction machinery, heavy vehicles, challenging ground conditions, and longer-duration project access.
Can ground protection mats be customized for specific projects?
Yes. Depending on the mat type, available options may include panel dimensions, thickness, surface pattern, color, logo marking, connector configuration, and selected material formulations. Share your equipment type, operating conditions, ground conditions, access area, and required quantity so suitable options can be evaluated for your project.
